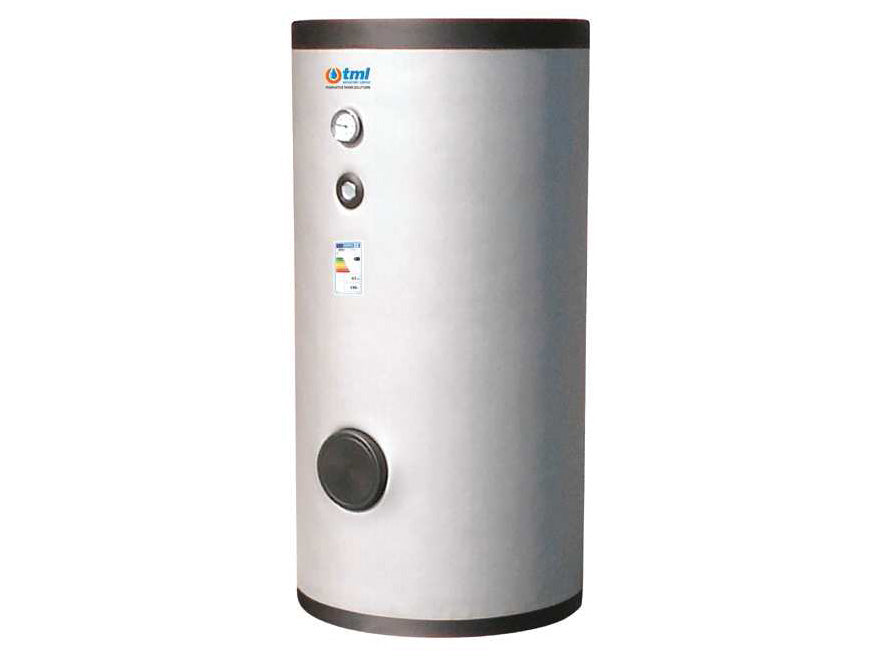

Steel AISI 316L Boiler for heat and solar pumps (WPX2)

Original price €0,00 - Original price €0,00
Original price
€0,00 ex VAT
€0,00 - €0,00
Current price €0,00 ex VAT

Stainless steel AISI 316L boiler for the production and storage of domestic hot water provided by one or two Internal fixed coil heat exchangers with high heat exchange surface; it can be powered by the heat pump and solar plant.

Specification

DHW cylinder

Material: AISI 316L Stainless steel (1.4404)
Internal protective processing: Pickling and passivation
External protective processing: Pickling and passivation

Rating (P max. / T max.) : 6 bar / 95°C

Cathodic protection: Magnesium anode

Heat exchanger

Material: AISI 316L Stainless steel (1.4404)
Internal protective processing: Pickling and passivation
External protective processing: Pickling and passivation

Type: Fixed coil for 200 litres capacity. Double spiral fixed coil for capacities above 300 litres

Rating (P max. / T max.): 10 bar / 95°C

General characteristics

Capacity: 200 - 2000 L
Warranty: 5 years
Insulation:

- Rigid polyurethane foam + PVC: Fire retardant class B3 (DIN 4102)

- Soft insulation with polyester + PVC: Fire retardant class B2 (DIN 4102)

Reference legislation:

- Pressure Equipment Directive (PED) 2014/68/UE Art. 4 Para 3

- Italian MOH specifications (products suitable to contain potable water)

- Energy related Products (Erp) Directive 2009/125/CE

Data Sheets

WP2X Technical Data Sheet

Brochure Download
